Building log

16-Aug-2006
Prepping
Catégorie: Wings : Rear spar

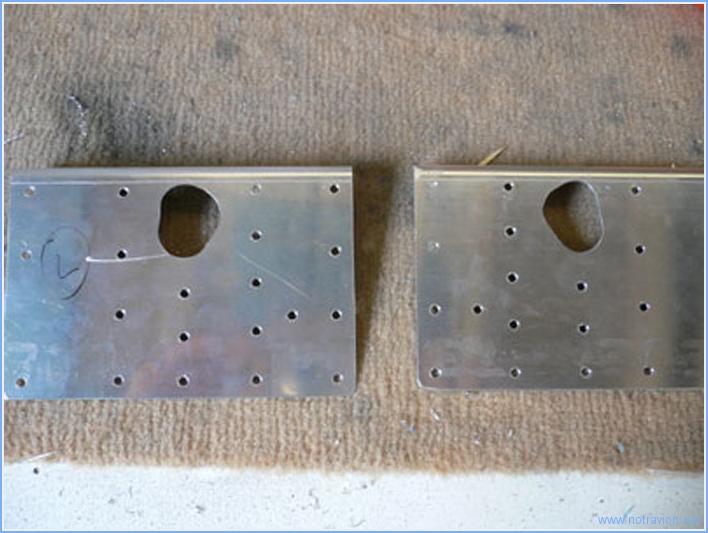

Drilling of doublers for the rear spar. The middle doubler needs an odd looking hole for the aileron connecting rod. The hole is first drilled then sanded to shape with a small grinder.



The all the parts got deburred and part of the spar flange got dimpled. It's not possible to dimple this part of the flange once the doubler in riveted. (see picture)




Working time on this subpart
Today :  2h (Total : 3h)
