Today I tackled the assembly of the seat backs and seat floors. First I put rivets to nowhere in the holes I had wrongly drilled in the floors. Then I riveted the hinges and angles to the seat backs. For the rivets that could not be squeezed, I used the gun mounted in the C-frame.

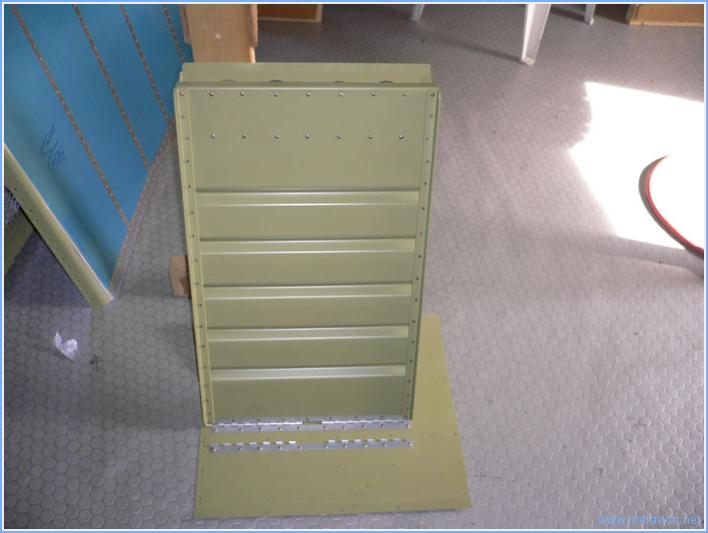

Here is the seatback with the floor, the seat is in the middle position and the hinge of the most forward position is visible.

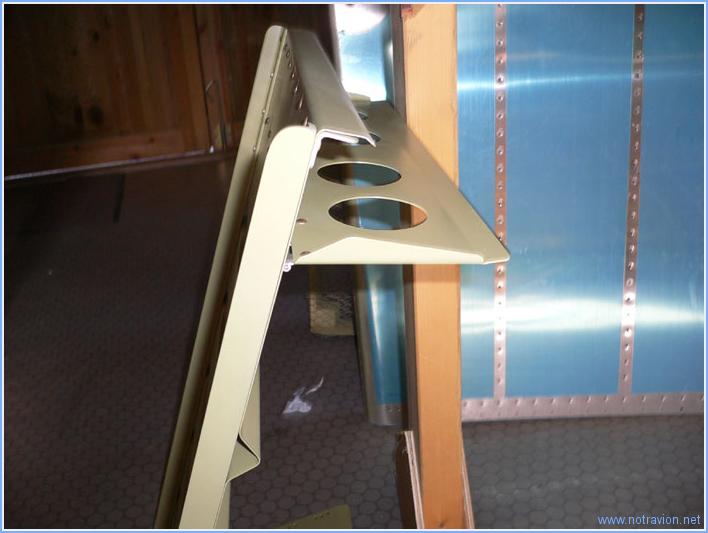

Here is the small flap in the back of the seatback that will slide in one of the two slots on the seat bulkhead.
