Building log

09-Sep-2009
Disassembly
Catégorie: Wings : Final assembly

Once everything has found its place it's back to square one and put all the parts again in storage.

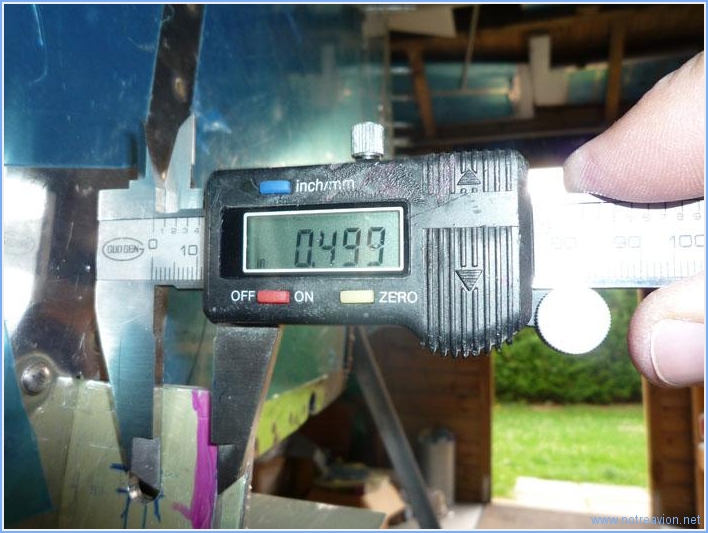

After removing the wings, I check the edge distances on the rear spar. This is the shortest I measure for a computed allowed distance of 0,469" (this is due to the fact I'm measuring the edge of the hole and not the center so I substract half a bolt diameter, 5/32"), from the 5/8 minimum edge distance given in the plans).

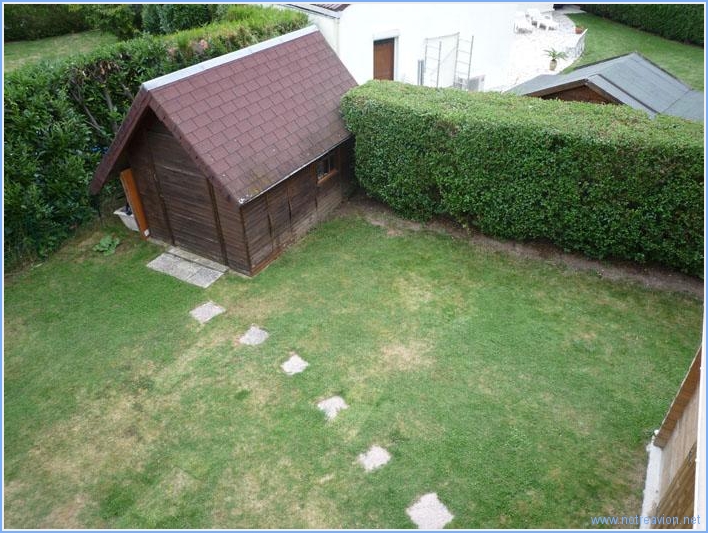

And the garden with everything back in storage.




I have a full sheet of tasks to do with all the parts installed during wing mating : deburring, dimpling, cutting...

Working time on this subpart
Today :  3h (Total : 50h)
