Nutplates
|

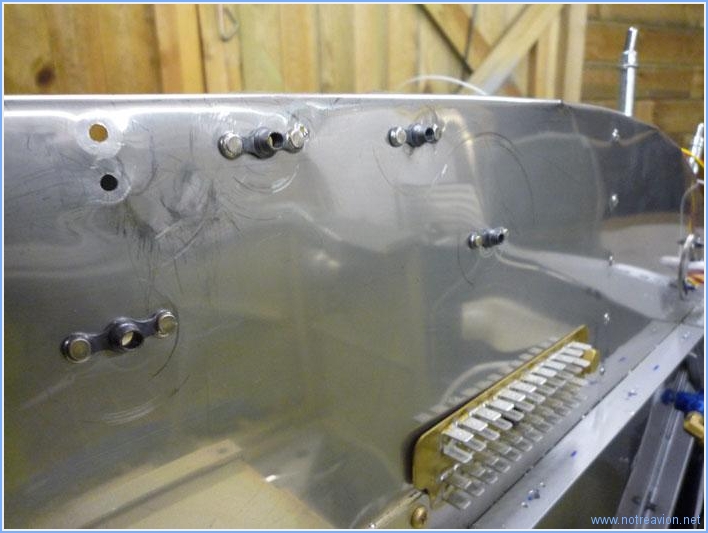

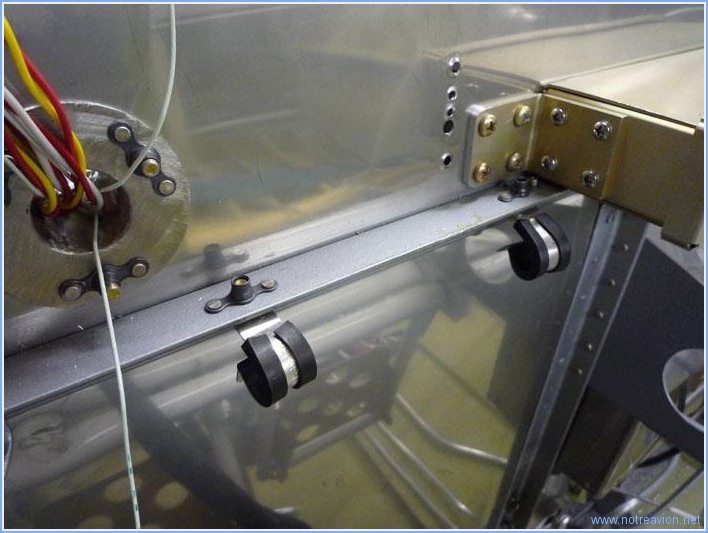

After some workshop cleaning, I installed the four nutplates for the GPS antennas' shelve. I also installed some nutplates on the upper firewall angle. This is to install some clamps for the wire routing. Working time on this subpart Today : 2h (Total : 25h) |
