Building log

11-Apr-2010
NAV antenna
Catégorie: Empennage

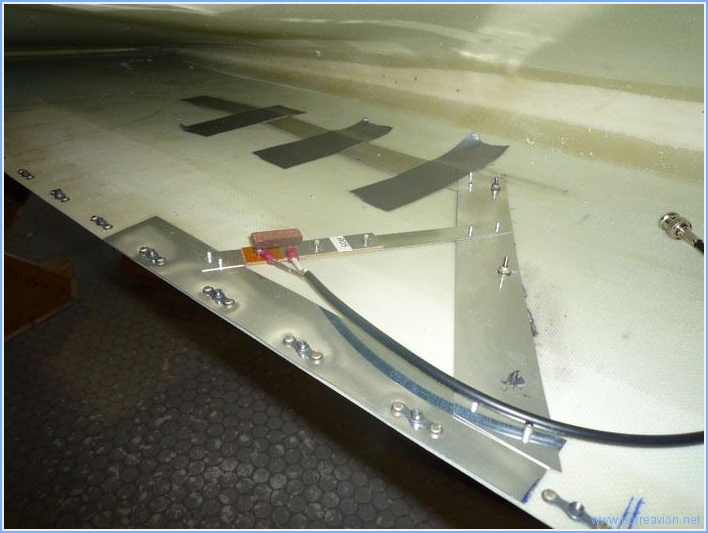

The nav antenna is to be installed in the left wing tip. The antenna is resting on the bottom of the tip. Per plans, the part facing the opening of the tip should be in direct contact with the sing structure, but it's not possible as the tip slides into the wing. So the contact will be made via the the four screws, if it does not work, adding a connection media won't be that difficult.

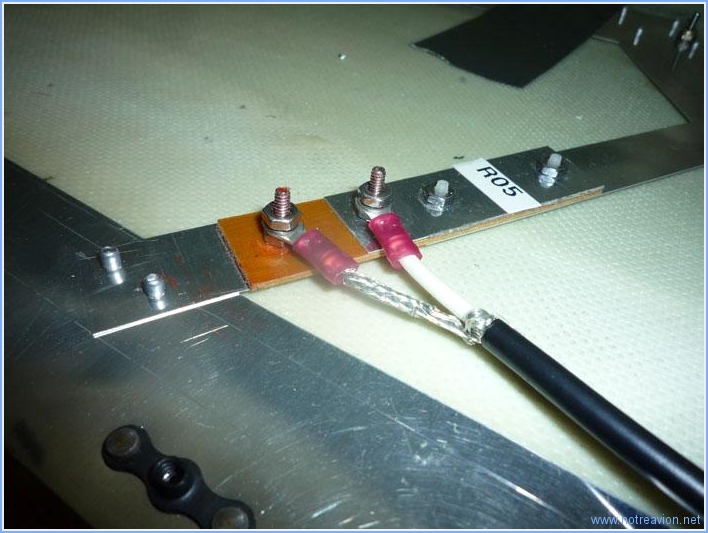

For the time being I installed a small length of coaxial cable, just to test how to install the terminals.




Working time on this subpart
Today :  2h (Total : 64h)
