15-Sep-2011
Catégorie: Assembly

I first tried to install the wing root fairing and succeeded, but the seal does not look that good, I think the gap with the fuselage is too wide. I will install new fairings later.



I then installed the fuel lines in the cabin for good.

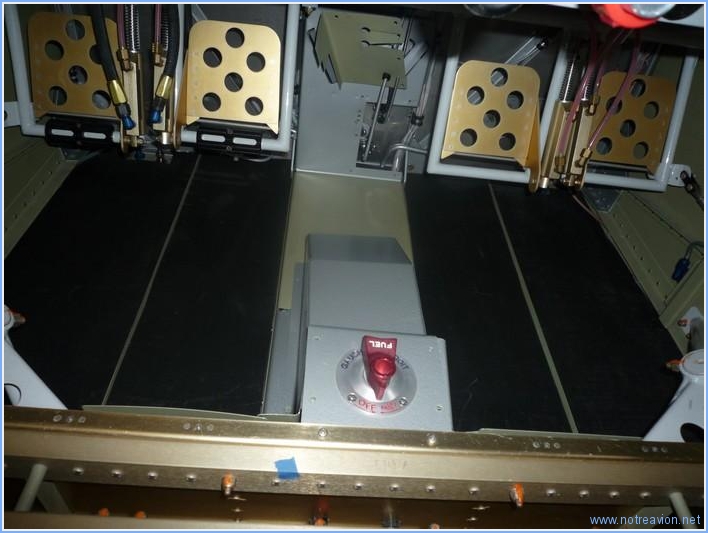

I also cleaned the floors and installed the noise reduction mats. I still have some small items to finish before installing the underseat floors.




Working time on this subpart
Today :  4h (Total : 74h)

Lectures (2722)
11-Sep-2011
Catégorie: Assembly

Today we spent two hours at the hangar with Sabine we ended being quite nervous, as not everything goes smoothly.
The wing roort fairing and seal were problematic to install.








Working time on this subpart
Today :  2h (Total : 70h)

Lectures (2711)
10-Sep-2011
Catégorie: Assembly

Before working on the fuel lines I connected the ruuder cables to the pedals. It looks easy, two bolts, two small steel strips, a few washers, a nut and a safety pin. But visibility is scarce and installing the safaty pins is a challenge.



This is the fuel line on the left side. I first made the 90° angle out of tubing as going with the braided line was not possible due to a too small radius.



I also connected the right fuel tank, this is mich easier as the connection is straight.




Working time on this subpart
Today :  4h (Total : 68h)

Lectures (2572)
31-Aug-2011
Catégorie: Assembly

Today I installed some panels in the cockpit : the baggage rear bulkhead and all the flap covers.

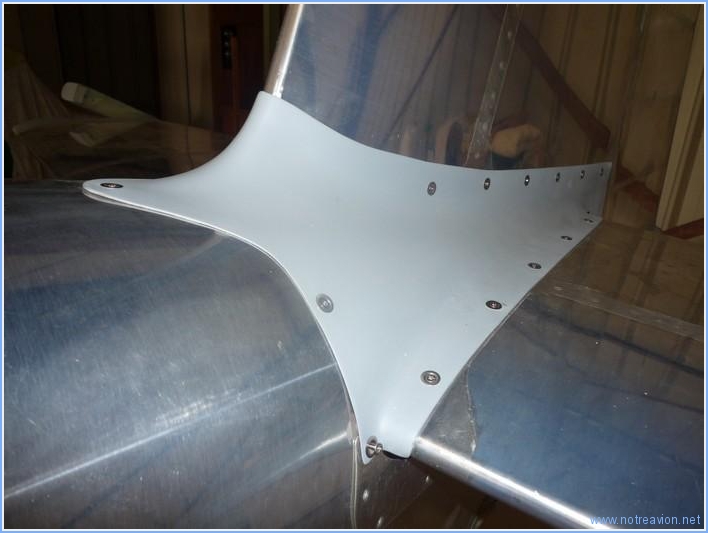

I also installed the upper empennage fairing.

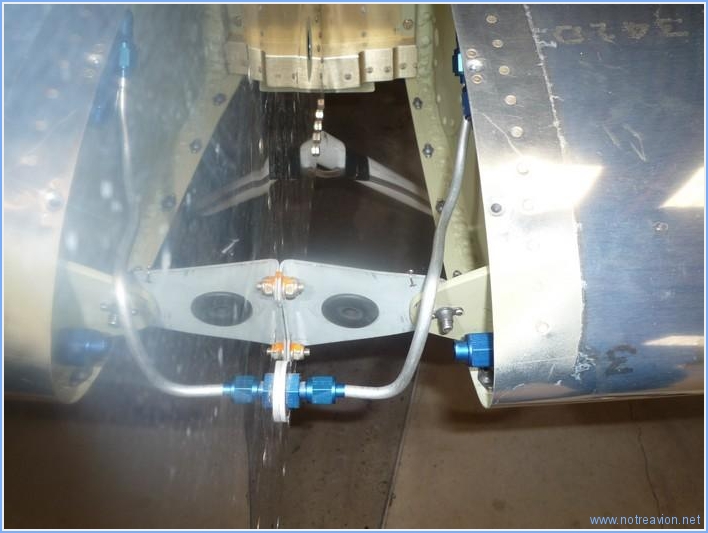

I finished the fuel tank vents by connecting the tank exit to the fuselage fitting.

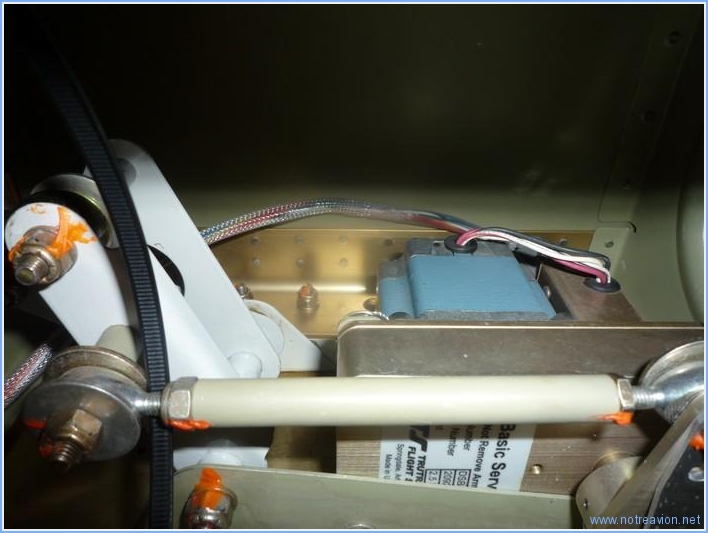

I also connected the autopilot roll servo.




Working time on this subpart
Today : 4h (Total : 64h)

Lectures (2649)
25-Aug-2011
Catégorie: Assembly

I managed to finish installing the elevator rods. I then tidied up the wing tips wiring before installing the tips for good.


Working time on this subpart
Today :  3h (Total : 60h)

Lectures (2655)
